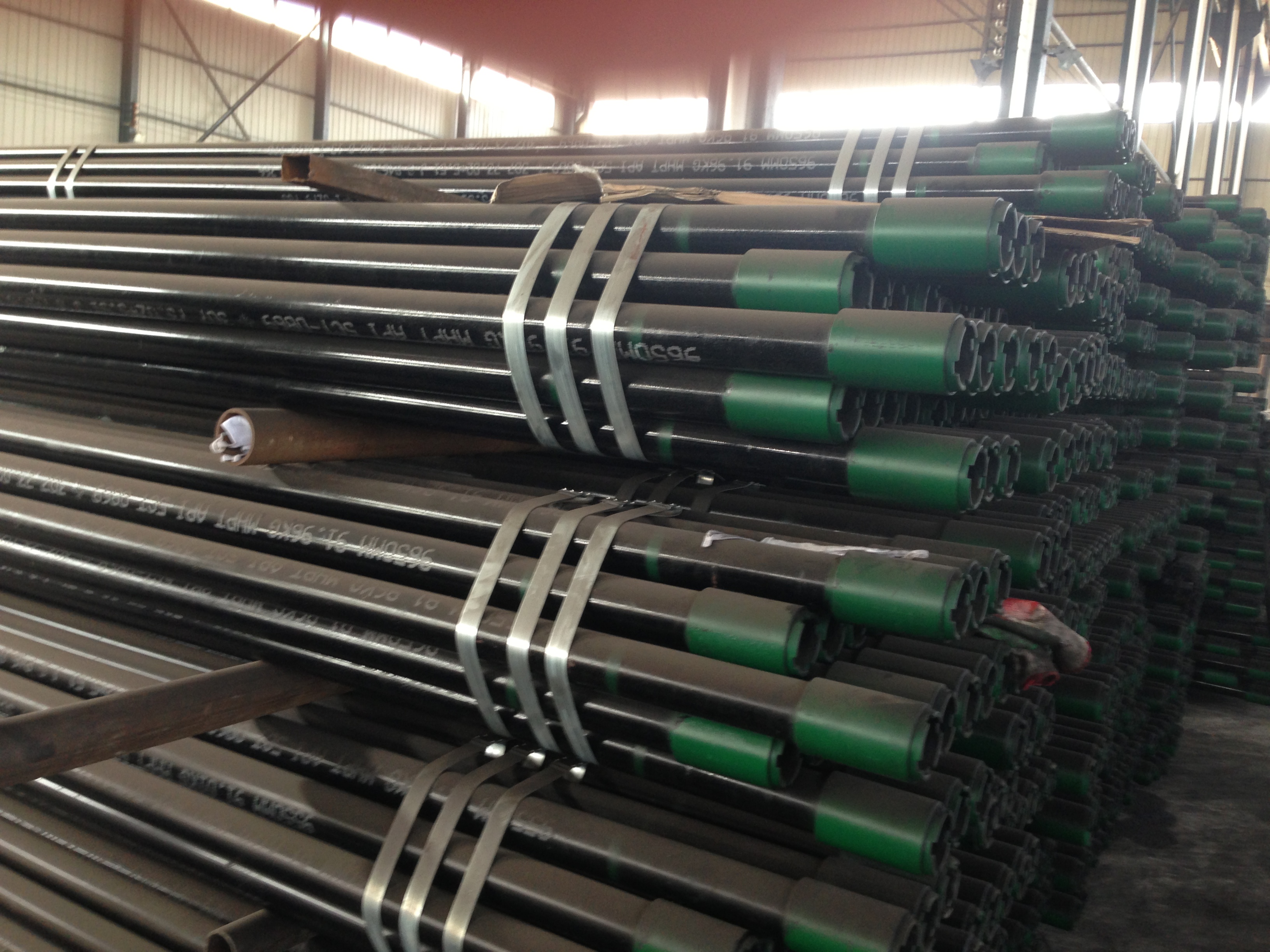

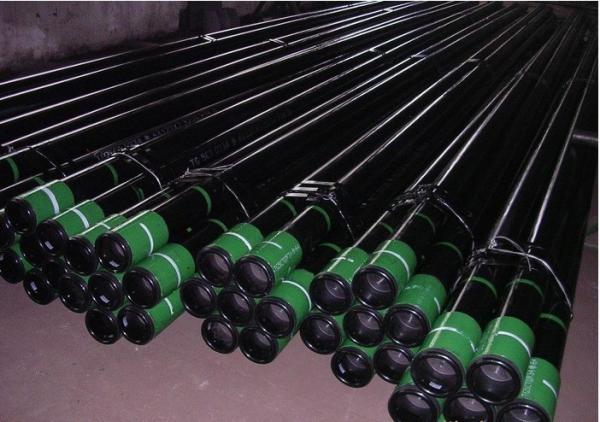

J55 API seamless casing pipe or tubing is very common in oil drilling field. It is often used in shallow oil and gas extraction or water wells due to its low grade and price.
API Seamless Oil Tubing
Product Description
Standard: API 5CT
Steel grade:H40, J55, K55, N80, L80, P110, Q125
OD of Tubing: 2 3/8" - 4 1/2" (60.3mm-114.30mm)
Thread: EUE ( Exteral Upset End), NUE ( Non Upset End)
Length:R1( 6.10-7.32m ), R2( 8.53-9.75m), R3(11.58-12.80m))
TUBING PIPES | |||||
STANDARD: API SPEC 5CT | |||||
Outside Diameter Specified(mm) | Nominal Weight Threads & Coupling | Steel Grade | WT (mm) | Type of Thread | |
Ib/ft | N U | E U | |||
60.32(2 3/8" ) | 4.70 | H, J, L, P | 4.83 | YES | YES |
5.80 | C, N, L, P | 6.45 | YES | YES | |
5.95 | L, P | 6.45 | YES | YES | |
7.35 | C, L | 8.53 | YES | ||
7.45 | L, P | 8.53 | YES | ||
73.02(2 7/8" ) | 6.40 | H, C, N, L, P | 5.51 | YES | |
6.50 | H, C, N, L, P | 5.51 | YES | ||
7.80 | C, N, L, P | 7.01 | YES | ||
7.90 | C, N, L, P | 7.01 | YES | ||
8.60 | C, N, L, P | 7.82 | YES | ||
8.70 | C, N, L, P | 7.82 | YES | ||
9.45 | L, C | 8.64 | YES | ||
88.90(3 1/2" ) | 9.20 | H, J, C, N, L, P | 6.45 | YES | |
9.30 | H, J, C, N, L, P | 6.45 | YES | ||
10.20 | H, J, C, N, L | 7.34 | YES | ||
12.70 | C, N, L, P | 9.52 | YES | YES | |
12.95 | L, P | 9.52 | YES | ||
101.60(4" ) | 9.50 | H, J, C, N, L | 5.74 | YES | |
11.00 | H, J, C, N, L | 6.65 | YES | ||
114.30(4 1/2" ) | 12.60 | H, J, L, N, C, T | 12.75 | YES | |
12.75 | H, J, L, N, C, T | 12.75 | YES | ||
Cangzhou High Booming Pipe Equipment Co.,Ltd ,is loacated in the Cangzhou city, north of China. It mainly manufacture and supply OCTG Pipe, Seamless Steel Pipe, Hollow Section Tube and Galvanized Pipe for customers both at home and abroad.
|
|
